High strength Flexible and fire – resistant Fiberglass veil used for pipe

20000m2
MOQ
from USD0.09/m2 FOB Ningbo to USD0.3/m2 FOB Ningbo
Price
High strength Flexible and fire – resistant Fiberglass veil used for pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Fiberglass
Color: White
Core Diameter: 152mm
Width: 300mm
Length: 500m
Weight/m2: 60g
Thickness: 0.55 MM
Yarns Distance: 30MM
High Light:

seepage resistance fiberglass composite

,

seepage resistance fiberglass surface mat

,

Wall Covering fiberglass construction materials

Basic Infomation
Place of Origin: China
Brand Name: STR
Certification: SGS Test report(ETAG004),Test report
Model Number: FGT-014
Payment & Shipping Terms
Packaging Details: carton and pallet
Delivery Time: about 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: one 40ft container per two days
Product Description

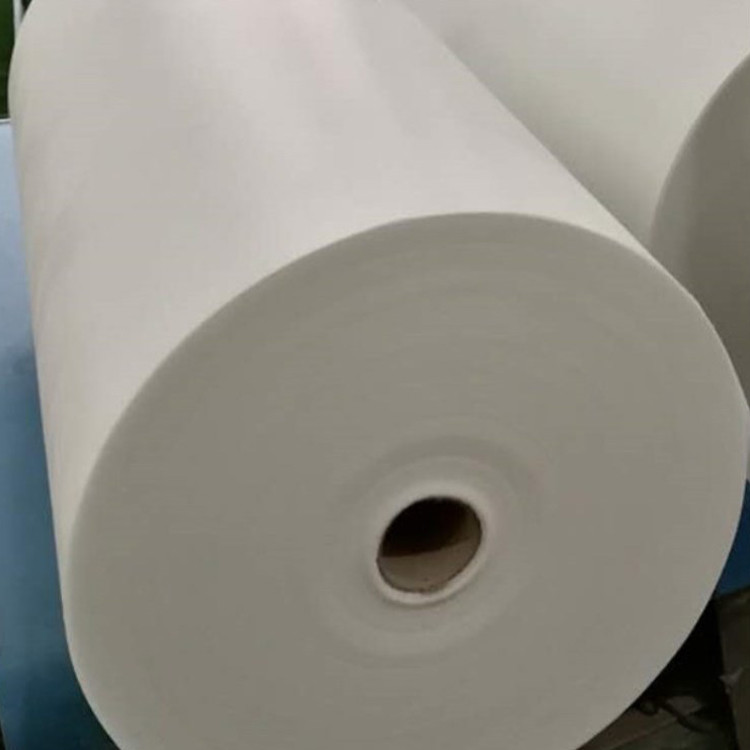

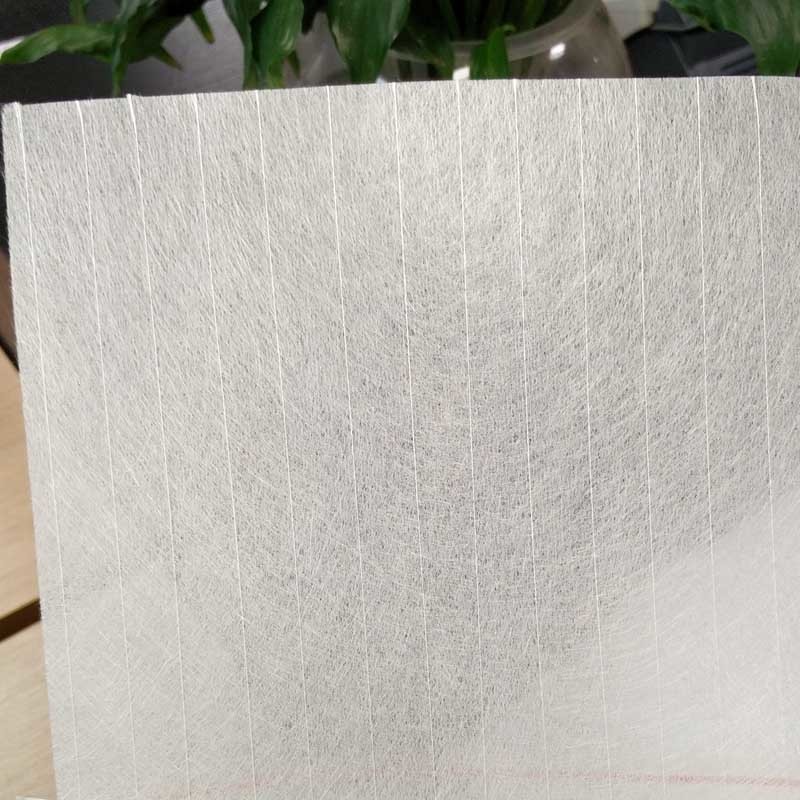

High strength Flexible and fire – resistant Fiberglass veil used for pipe



High strength Flexible and fire – resistant Fiberglass veil used for pipe is used as basic material for anti-corrosion wrapping on steel pipelines that buried underground for oil or gas transportation. It has good compatibility with coal tar, pitch etc, so the underground transportation pipe wrapped with coal tar and pitch S-PM mat possesses excellent resistance to permeate and various mediums and has longer service life and less repairing and changing cost. All technical data of S-PM series can meet or even surpass the specification stipulated in the related standards in China. Therefore, S-PM series is the ideal basic material of internal and external wrapping strip.

Product Features:

  1. Excellent fiber distribution
  2. Excellent tensile strength
  3. Good tear strength
  4. Good flexibility

Technical Specification:

Item Unit Type
S-PM-50/30 S-PM-60/30 S-PM-90/30
Area weight g/m2 50 60 90
Binder content % 16 16 16
Linear density of reinforcement yarn Tex 34-68 34-68 34-68
Yarns distance mm 30 30 30
Thickness mm 0.55 0.63 0.78
Tensile MD N/5cm ≥200 ≥180 ≥280
Tensile CMD N/5cm ≥75 ≥100 ≥200

PACKAGE:

Plastic bag and carton


Specifications

Core diameter 152mm
Weight/m2 60g
Width: 100mm
Length/roll: 2800m
Color: white color


Feature

Certificate: TDS, Test report, SGS, ISO9001, ETAG004
Place of Origin: Made-In-China


Packing

1. Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container.
2. Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container.


Business information:

Loading port: Ningbo or Shanghai Port, China
Payment items: TT, DP, L/C, Paypal
H.S. Code: 7019909000
Leading time: 15 days/40ft container
MOQ: 20000m2
Samples: If A4 size piece sample, it is free; if big samples, it is not free
  1. How to produce

High strength Flexible and fire – resistant Fiberglass veil used for pipe 0

  1. How to pack

High strength Flexible and fire – resistant Fiberglass veil used for pipe 1
