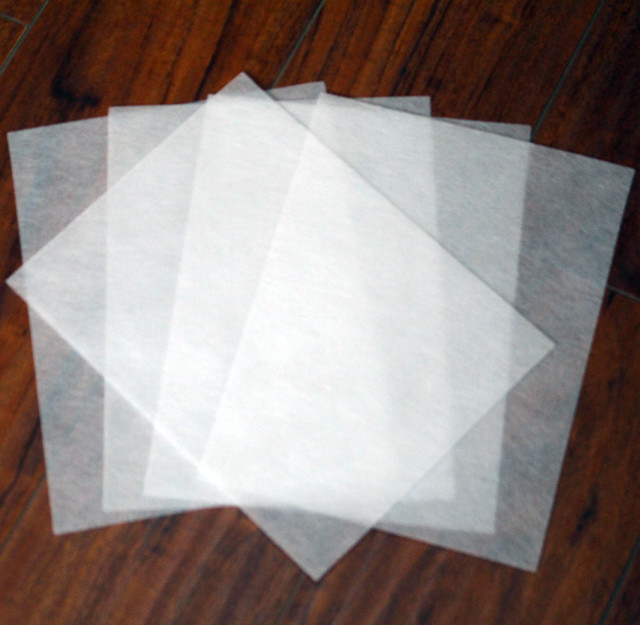

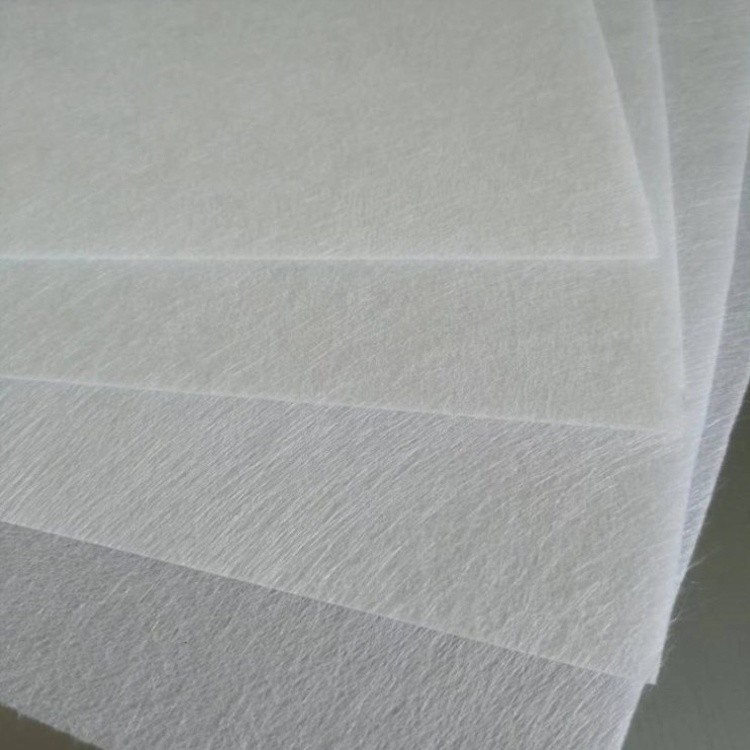

High strength Flexible and fire – resistant fiberglass non-woven mat pipe
High strength Flexible and fire – resistant fiberglass non-woven mat pipe is used as basic material for anti-corrosion wrapping on steel pipelines that buried underground for oil or gas transportation. It has good compatibility with coal tar, pitch etc, so the underground transportation pipe wrapped with coal tar and pitch S-PM mat possesses excellent resistance to permeate and various mediums and has longer service life and less repairing and changing cost. All technical data of S-PM series can meet or even surpass the specification stipulated in the related standards in China. Therefore, S-PM series is the ideal basic material of internal and external wrapping strip.
Product Features:
Technical Specification:
Item | Unit | Type | ||
S-PM-50/30 | S-PM-60/30 | S-PM-90/30 | ||
Area weight | g/m2 | 50 | 60 | 90 |
Binder content | % | 16 | 16 | 16 |
Linear density of reinforcement yarn | Tex | 34-68 | 34-68 | 34-68 |
Yarns distance | mm | 30 | 30 | 30 |
Thickness | mm | 0.55 | 0.63 | 0.78 |
Tensile MD | N/5cm | ≥200 | ≥180 | ≥280 |
Tensile CMD | N/5cm | ≥75 | ≥100 | ≥200 |
PACKAGE:
Plastic bag and carton
Specifications
Core diameter | 152mm |
Weight/m2 | 90g |
Width: | 100mm |
Length/roll: | 2800m |
Color: | white color |
Feature
Certificate: | TDS, Test report, SGS, ISO9001, ETAG004 |
Place of Origin: | Made-In-China |
Packing
1. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container. |
2. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container. |
Business information:
Loading port: | Ningbo or Shanghai Port, China |
Payment items: | TT, DP, L/C, Paypal |
H.S. Code: | 7019909000 |
Leading time: | 15 days/40ft container |
MOQ: | 20000m2 |
Samples: | If A4 size piece sample, it is free; if big samples, it is not free |
