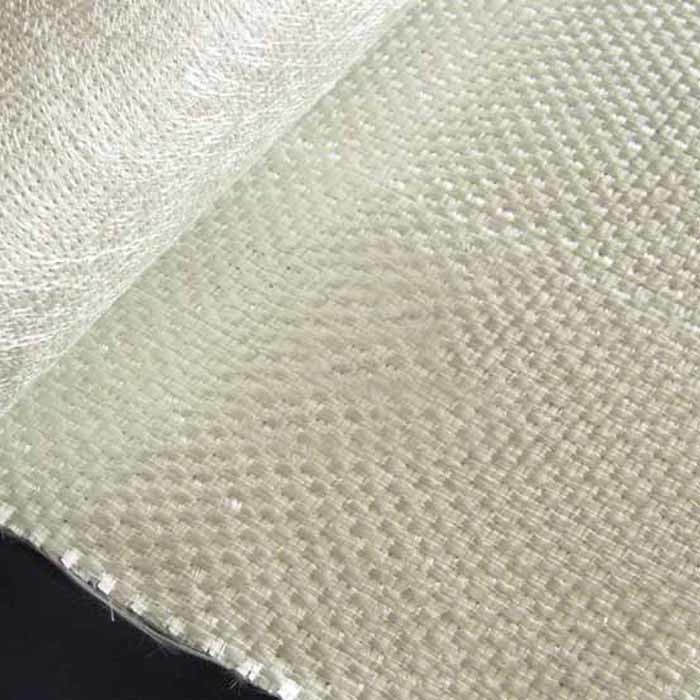

Fiberglass stitched mat by polyester threads used for composite
Fiberglass stitched mat by polyester threads used for composite is a combination of woven roving and chopped glass fiber which is stitched together with woven roving by polyester thread.
It is mainly applied in the processes of molding compressing, pultrusion, RTM, filament winding etc..
This fabric is compatible with UP Resin, Vinyl ester resin, epoxy resin system etc. It is widely used in vehicle bodies and panels, marine (boat hulls and decks), pipeline, lamination and structural profiles etc.
1. Increase strength, reduce product weight and better surface finish.
2. low resin-consumption and faster wet-out.
3. Good manufacturability and mechanical properties
4. Improved fatigue and impact resistance
General parameters:
| Code |
Total weight (g/m2) |
Weight of each layer, g/m2 | Width, mm | ||
| Chopping | Woven Roving | Chopping | |||
| STR-WRM500/300 | 800 | 300 | 500 | 200～2600 | |
| STR -WRM600/300 | 900 | 300 | 600 | 200～2600 | |
| STR -WRM800/450 | 1250 | 450 | 800 | 200～2600 | |
| STR -WRDM300/500/300 | 1100 | 300 | 500 | 300 | 200～2600 |
| STR -WRDM450/800/450 | 1700 | 450 | 800 | 450 | 200～2600 |
PACKAGE:
Plastic bag and carton
Specifications
| Core diameter | 76mm |
| Weight/m2 | 480g~1300g |
| Width: | 1000mm or some other width |
| Weight/roll: | 40kgs |
| Color: | white color |
Feature
| Certificate: | TDS, Test report, SGS, ISO9001, ETAG004 |
| Place of Origin: | Made-In-China |
Packing
| 1. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container. |
| 2. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container. |
Business information:
| Loading port: | Ningbo or Shanghai Port, China |
| Payment items: | TT, DP, L/C, Paypal |
| H.S. Code: | 70193100 |
| Leading time: | 15 days/40ft container |
| MOQ: | 20000m2 |
| Samples: | If A4 size piece sample, it is free; if big samples, it is not free |
