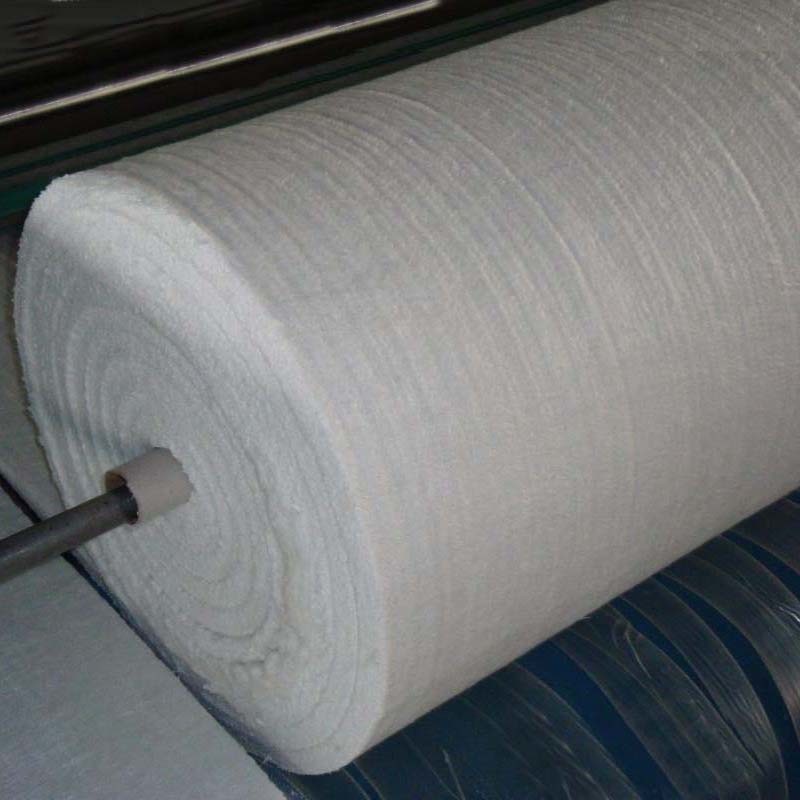

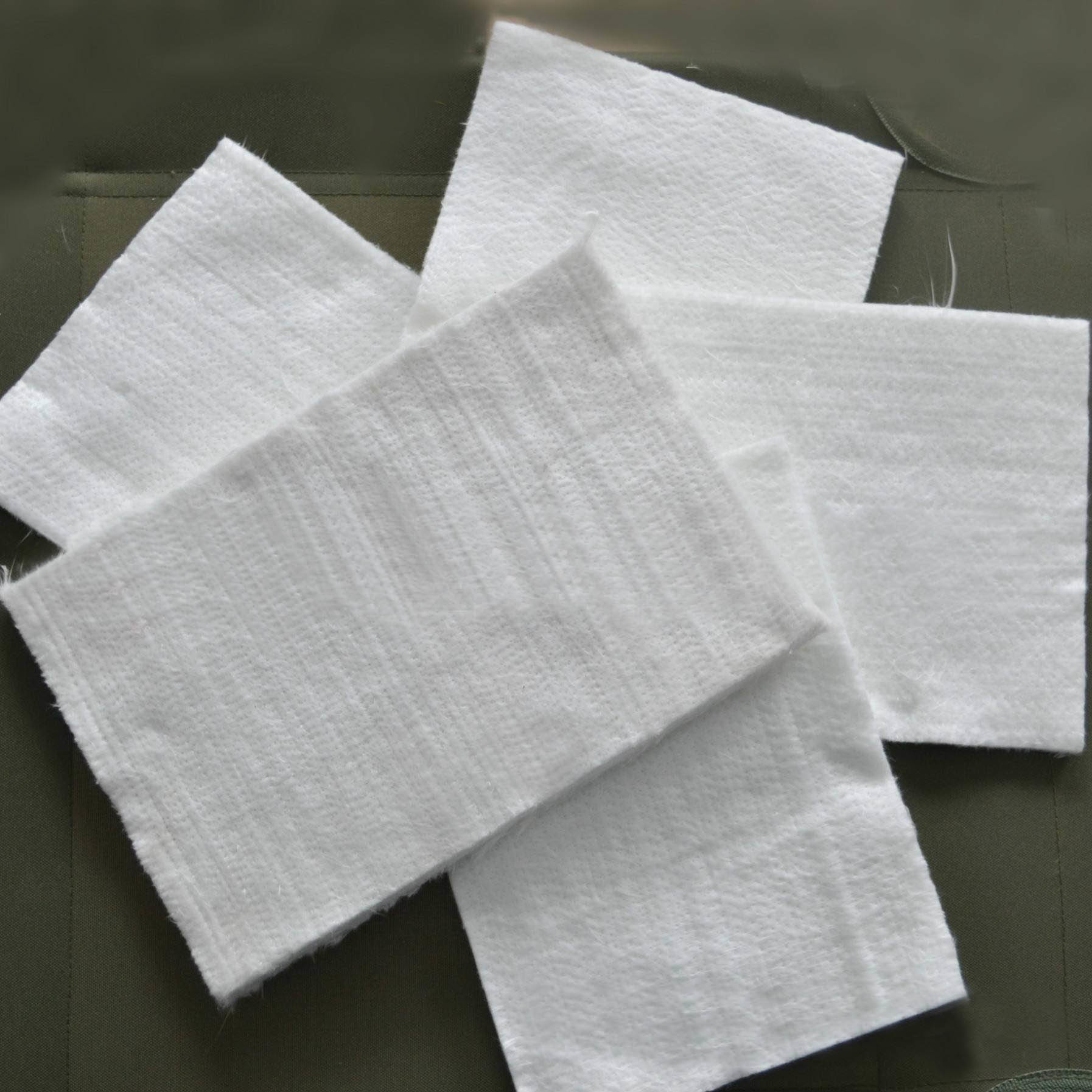

Strong Tenacity Fiberglass Needle Mat

20000m2
MOQ
from USD1/kg FOB Ningbo to USD1.5/kg FOB Ningbo
Price
Strong Tenacity Fiberglass Needle Mat
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Fiberglass And Net
Color: White
Core Diameter: 76mm Or Without Core
Width: From 10cm To 2.5m
Thickness: 3mm
Density: 130kg/m3
Highlight:

Strong Tenacity Fiberglass Needle Mat

,

Strong Tenacity Glass Fibre Mats

,

Strong Tenacity Fiberglass Surface Mat

Basic Infomation
Place of Origin: China
Brand Name: STR
Certification: SGS Test report(ETAG004),Test report
Model Number: FG-NM-010
Payment & Shipping Terms
Packaging Details: carton and pallet
Delivery Time: about 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: one 40ft container per two days
Product Description

White color fiberglass needle mat composited with fiberglass net used for filter



White color fiberglass needle mat composited with fiberglass net used for filter is made of fiberglass, randomly laid on a conveyer belt, then needle stitched with fiberglass mesh together. There is no binder or other knitting material used to bond the mat together. The mat is suitable for thick molded components because of its strong tenacity. It is easily fills the mold and conforms to complex shapes, while providing a smooth finished surface. It is good resin flowability and impregnation capability and no white strands. Because it is with fiberglass net, the strength will be much higher.



Fiberglass needle mat is primarily used in fiberglass molding processes such as GMT, RTM, etc. Typical products are automotive running boards, architectural panels, large industrial panels and other FRP products.

Characteristics
1. No binder or other knitting material used to bond the mat together.
2. Good resin flowability and impregnation capability. No white strands.
3. Strand has good resistance to wash ability and suitable for RTM, GMT and other
molding processes, 20 N/100 MM.
4. The mat is suitable for thick molded components because of its strong tenacity.
5. Needle mat easily fills the mold and conforms to complex shapes, while
providing a smooth finished surface.
6. The mat is fluey and convenient for running.

Application:
1) Needle Mat is primarily used in fiberglass molding processes such as GMT,
RTM, AZDEL.
2) Typical products are used for some craftworks such as injection, pressing,
mould compression, pultrusion and lamination.

3) Insulation

4)Filter



PACKAGE:

Plastic bag


Specifications

Core diameter 76mm
Weight/m3 130kg/m3
Width: 1040mm or some other width
Weight/roll: 28kgs
Color: white color


Feature

Certificate: TDS, Test report, SGS, ISO9001, ETAG004
Place of Origin: Made-In-China


Packing

1. Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container.
2. Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container.


Business information:

Loading port: Ningbo or Shanghai Port, China
Payment items: TT, DP, L/C, Paypal
H.S. Code: 70193100
Leading time: 15 days/40ft container
MOQ: 20000m2
Samples: If A4 size piece sample, it is free; if big samples, it is not free
  1. How to produce

Strong Tenacity Fiberglass Needle Mat 0

  1. How to pack

Strong Tenacity Fiberglass Needle Mat 1
