Fiberglass (+45 degree/-45 degree) biaxial fabric used for composite

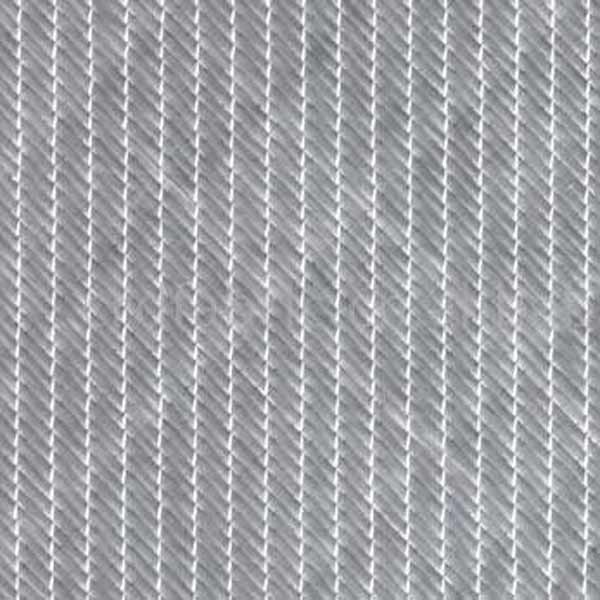

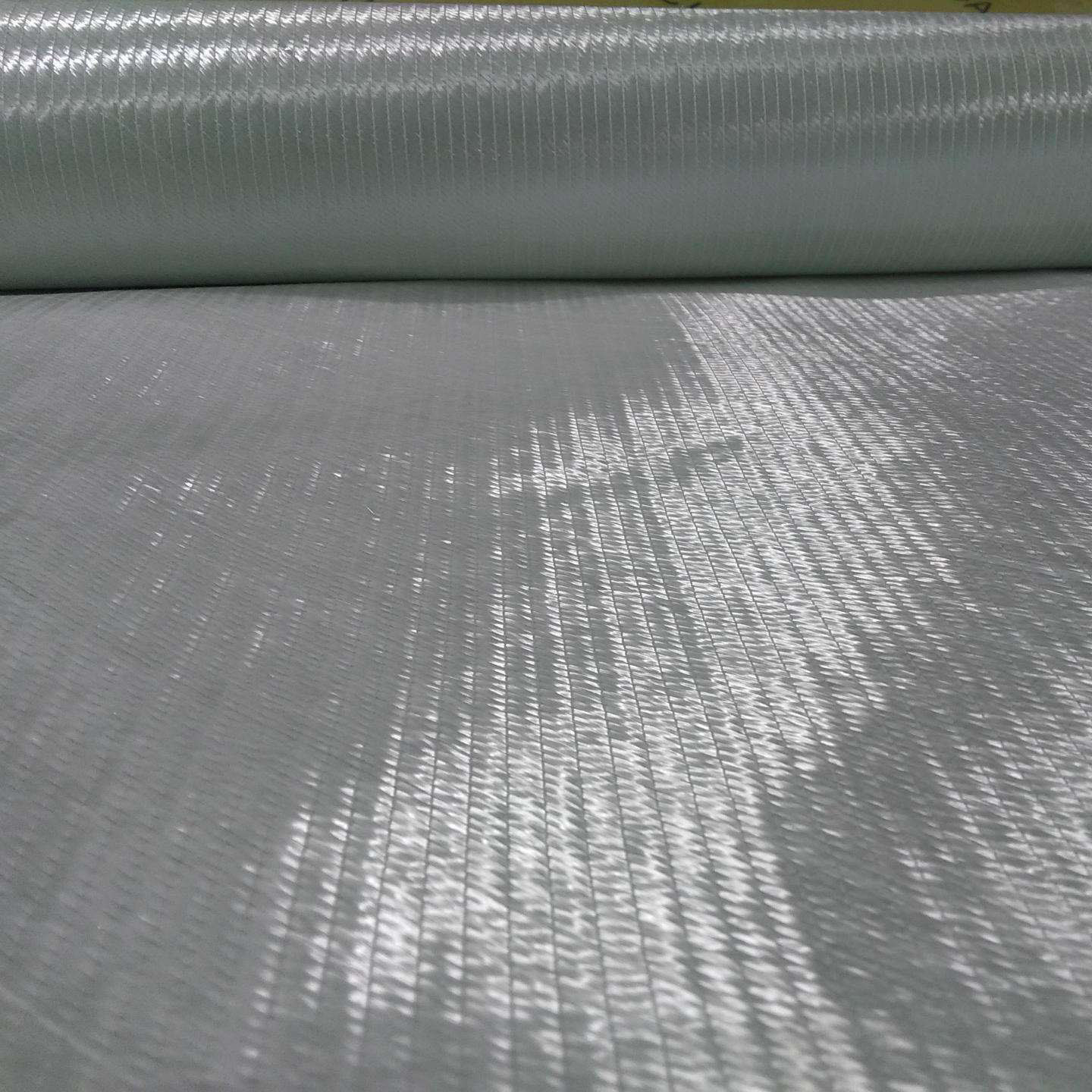

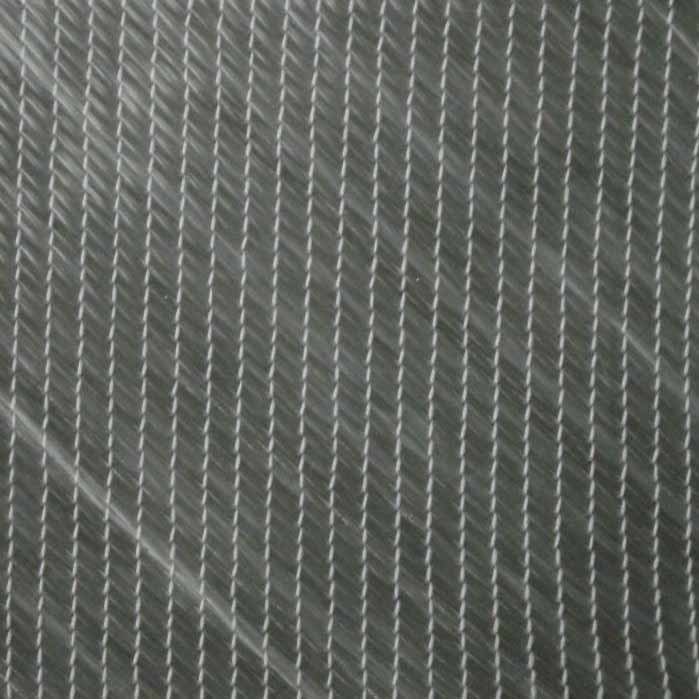

This fabric is made of fiberglass roving which are aligned at -45°/ +45°into two layers of roving by stitching together with or without a layer of chopped strand. It is mainly applied in the hand lay up, RTM and other close molding processes.
This fabric is compatible with UP Resin, Vinyl ester resin, epoxy resin system etc. It widely used in nacelles and blades for wind power, boat hull, cases and shell of auto etc.
Feature:
◎ Small gap between fibers, Increased strength, reduced product weight and better surface finish.
◎ low resin-consumption and faster wet-out.
◎ Good manufacturability and mechanical properties
◎ Improved fatigue and impact resistance
◎ No binder
General parameters:
| Items | Total Weight (g/m2) | The weight of each layers(g/m2) | Polyester Yarn Density | ||||
| 0° | 90° | +45° | -45° | CM layer | |||
| STR-BX300 | 306.7 | 150.33 | 150.33 | 6 | |||
| STR-BX400 | 407 | 200.5 | 200.5 | 6 | |||
| STR-BX450 | 457 | 225.5 | 225.5 | 6 | |||
| STR-BX600 | 607.2 | 300.6 | 300.6 | 6 | |||
| STR-BX800 | 807.6 | 400.8 | 400.8 | 6 | |||
| STR-BX1200 | 1208.6 | 601.3 | 601.3 | 6 | |||
| STR-BX1350 | 1358.8 | 676.4 | 676.4 | 6 | |||
| STR-BXM400/225 | 632 | 200.5 | 200.5 | 225 | 6 | ||
| STR-BXM600/225 | 832.2 | 300.6 | 300.6 | 225 | 6 | ||
| STR-BXM800/450 | 1257.6 | 400.8 | 400.8 | 450 | 6 | ||
| STR-BXM1208 | 682 | 200.5 | 200.5 | 275 | 6 | ||
| STR-BXM1308 | 732 | 225.5 | 225.5 | 275 | 6 | ||
| STR-BXM1708 | 882.2 | 300.6 | 300.6 | 275 | 6 | ||
| STR-BXM2408 | 1082.6 | 400.8 | 400.8 | 275 | 6 | ||
Packing:
Each roll is wrapped by PE film and then packed into carton. Stacking in bulk or palletized is available; the pallet shall be no higher than 2 layers.
Characteristics
1. No binder
2. Good resin flowability and impregnation capability
3. Suitable for thick molded components because of its strong tenacity.
4. Easily fills the mold and conforms to complex shapes, while
providing a smooth finished surface.
5. It is fluey and convenient for running.
PACKAGE:
Plastic bag
Specifications
| Core diameter | 2 inches or 3 inches |
| Weight/m3 | 300g~1200g |
| Width: | 1040mm or some other width |
| Weight/roll: | 28kgs or some other weight |
| Color: | white color |
Feature
| Certificate: | TDS, Test report, SGS, ISO9001, ETAG004 |
| Place of Origin: | Made-In-China |
Packing
| 1. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container. |
| 2. | Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container. |
Business information:
| Loading port: | Ningbo or Shanghai Port, China |
| Payment items: | TT, DP, L/C, Paypal |
| H.S. Code: | 70195900 |
| Leading time: | 15 days/40ft container |
| MOQ: | 20000m2 |
| Samples: | If A4 size piece sample, it is free; if big samples, it is not free |
